Control Command Cables & Power Cables
STANDARD TS IEC 60502 - 1 / VDE 0276
1. CONDUCTOR
IEC 60228 VDE 0295 Class 1 or 2 Cu
2. INSULATION
DIN VDE 0207 XLPE 2X11
Core Colours
VDE 0293 (J) (JZ) (OZ)
3. INNER SHEATH
PVC Bedding
4. OVERALL SCREEN-ARMOUR
Galvanized Round Wire Armour
5. JACKET
PVC TM1 Black
1. BENDING RADIUS
15 x cable diameter
2. WORKING VOLTAGE
0,6 / 1 KV
3. TEST VOLTAGE
3,5 KV
4. TEMP RANGE
Flex using -5 / +50 °C
Fixed using -30 / +90 °C
5. INSULATION RESISTANCE
min.5000 M Ω km
SPOLL SIZE: 100 / 500 / 1000 mt
NOTES
(J) : Coloured and green - yellow core
(JZ) : Black cores (numbered) + green-yellow core
(OZ) : Black cores (numbered)

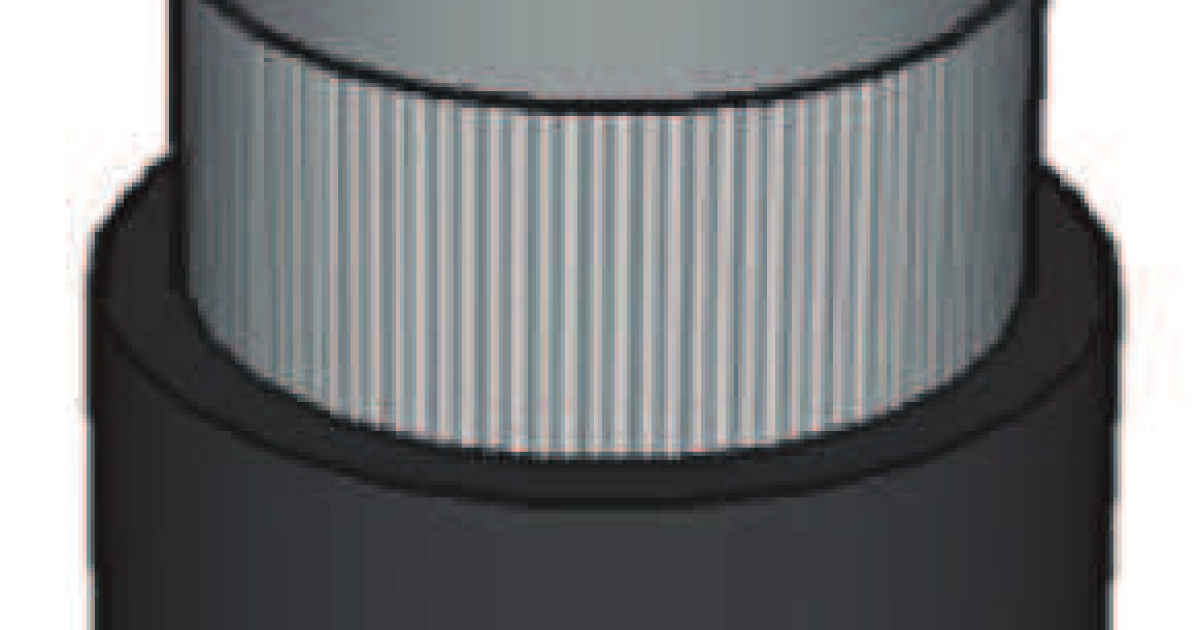

2XRY (N2XRY, YE OV) construction is conductors stranding in layers and steel armour for heavy mechanical resistance. These cables generally used in industry systems, power plants, road lighting, measuring as a control cable. Suitable for indoor and outdoor, underground use.
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC
