Control Command Cables & Power Cables
STANDARD TS 9760/HD 21,5 S3; IEC 60227
1- CONDUCTOR:
IEC 60228 VDE 0295 Fine wire Class 5 Cu, SnCu
2. INSULATION:
Rubber
Core Colors
VDE 293 (J) (JZ) (OZ)
3. INNER SHEATH
Rubber

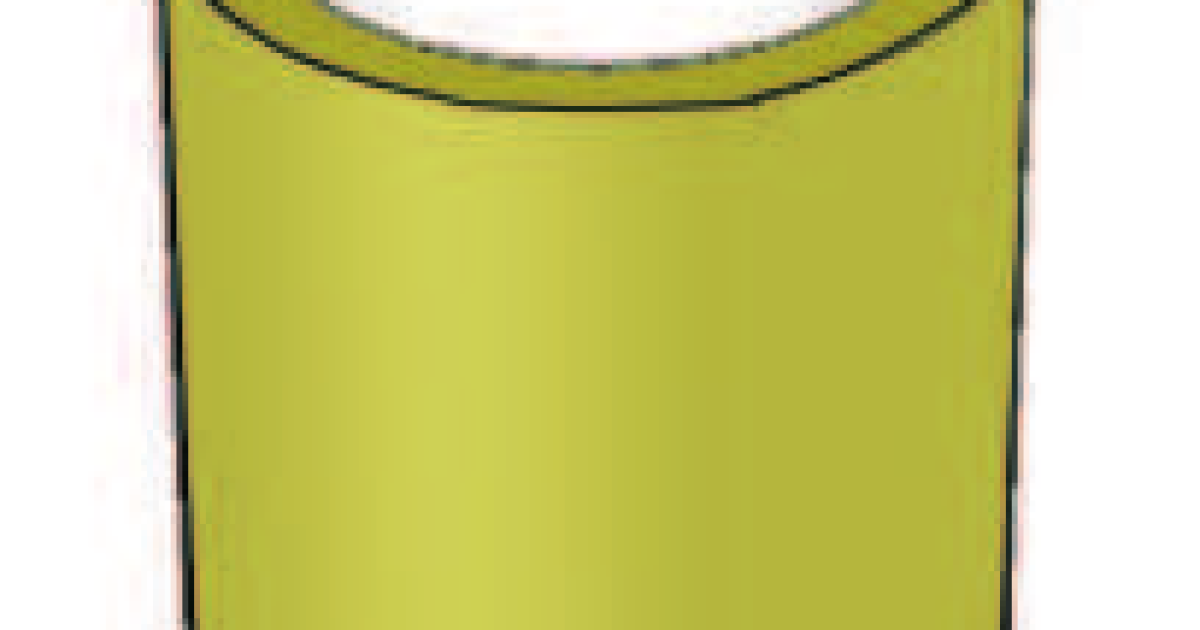

4. JACKET
Rubber
Color: Yellow
1- BENDING RADIUS
10 x cable diameter
2.WORKING VOLTAGE
06 / 1 KV
3.TEST VOLTAGE
3000 V 3 KV
4. TEMP RANGE
Flex Using - 25 / +80 °C
Fixed Using - 40 / +80 °C
5.INSULATION RESISTANCE
min.20 M Ω km
NSSHÖU, Are suited as a connecting cable for very high mechanical stress in underground mining and tools for use in industries and outdoor use. They are also used for mining industry, surface mining, stone-pits, on building sites, outdoors as well as indoors. The cable is suitable for fixed installation on plaster in dry, damp and wet areas. A long duration of life is guaranteed under extreme operating conditions. The cable is not suitable for drumming and use in all types of machinery, such as robots, handling units and energy transfer units, where constant mobility is essential.
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC
