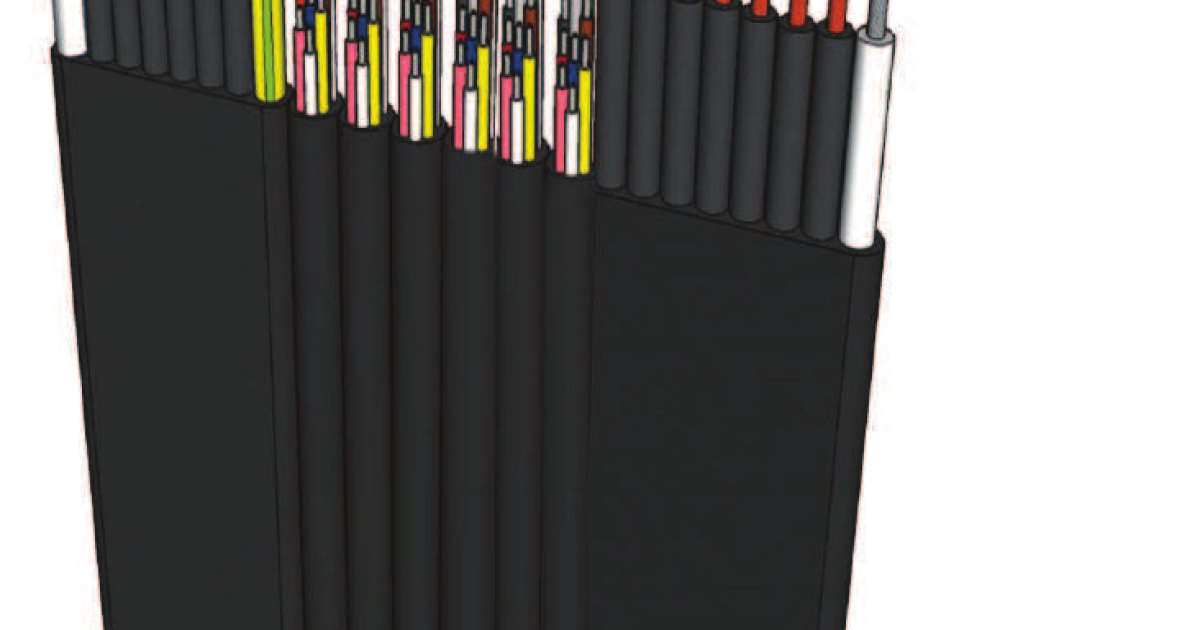

Digital Flat Lift Cables 1
"Neopren Mixed PVC, Oil Resistant, Digital Cable For Flexible Uses "
STANDARD TS EN 50214
1. CONDUCTOR
IEC 60228 VDE 0295 Class 5 Cu
7x0,75 Cu x 2 + 9x0,22 SnCu x 6 = 50 core
2. INSULATION
DIN VDE 0281 PVC TI2
3. SUPPORTING
On both sides of outer sheath supporting wires (steel)
4. JACKET
PVC rubber based black
1. BENDING RADIUS
10 x cable diameter
2. WORKING VOLTAGE
300-500 V 0,75 cores
3. TEST VOLTAGE
2,0 KV 0,75 cores
4. TEMP RANGE
Flex using -5 / +70 °C
Fixed using -40 / +80 °C
SPOLL SIZES : 500-1000 mt
Digital Flat 1 is a high flexible digital equipment cable. These cables generally used in elevators, conveying systems, hoists, cable trolleys for digital system wiring.
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC
