Polyurethane Cables

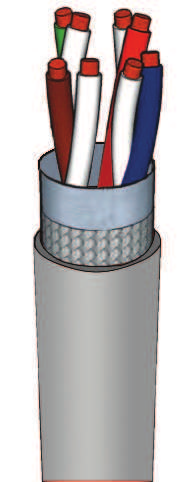

TEKNO FLEX PUR CAT6 S FTP PATCH
"Moving Environment Data Communication Cable"
STANDARD EIA /TIA 568
1. CONDUCTOR
25 AWG 7x0,18 mm Cu
2. INSULATION
PE
Core Colours EIA / TIA 568
3. OVERALL SCREEN 1
Al foil
4. OVERALL SCREEN 2
SnCu copper wire braiding
5. JACKET
Gray Pur (RAL 7038)
1. BENDING RADIUS
8 x cable diameter
2. WORKING VOLTAGE
250 V
3. TEST VOLTAGE
1,2 KV
4. TEMP RANGE
-20 / +60 °C
5. INSULATION RESISTANCE
5000 MΩ km
6. CAPACITANCE
56,0 pF/m (1KHz)
7. IMPEDANCE
100 ± Ω (MHz)
8. FREGUENCY
155 MHz
9. LENGTH MAX
100 m
10. ATTENUATION (db / 100 m)
21,7 dB (100 MHz)
11. RETURN LOSS
12 dB (100 MHz)
SPOLL SIZES: 305 mt Box - 100-500-1000 mt Spoll
Notes:
Core Colours
1. blue / white-blue
2. orange / white-orange
3. green / white-green
4. brown / white-brown
EIA: Electronic Industries Alliance
TIA: Telecommunication Industries Alliance
TSB: Tecnical System Declaration
TEKNO FLEX PUR CAT6 S FTP PATCH cable meet the requirements acc.to the EIA / TIA-568 ve TSB 36 and ISO / IEC 11801 resp. EN 50173 ( Class d)’ satandards. These cables mainnly used where the terminal density is very high e.g. cabling of offices as a patch and connection cable in the tertiary area (horizontal). Cable construction is thinner, flexible, overall aluminum foil screen and overall SnCu copper braided 4 twisted pairs and a separatır. (25 AWG)
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC
